Covered type, with fan, 100 to 240 VAC, Power rating 300 W, Output: 24 V, Terminal blocks (Screw terminal), Remote control function, Parallel operation, Harmonic current emissions

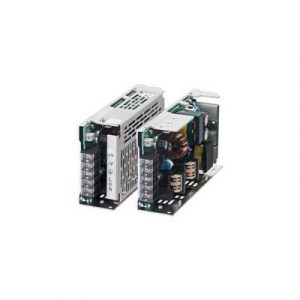

Omron S8JXP Series
Bộ nguồn Omron Series S8JXP đã ngưng sản xuất thay thế bằng series Omron S8FS-G
Mã sản phẩmĐiện áp ngõ raDòng điệnKích thước
S8JX-P050055V10A42x97mm
S8JX-P05005C5V10A42x97mm
S8JX-P05005CD5V10A42x97mm
S8JX-P05005D5V10A42x97mm
S8JX-P0501212V4.2A42x97mm
S8JX-P05012C12V4.2A42x97mm
S8JX-P05012CD12V4.2A42x97mm
S8JX-P05012D12V4.2A42x97mm
S8JX-P0502424V2.1A42x97mm
S8JX-P05024C24V2.1A42x97mm
S8JX-P05024CD24V2.1A42x97mm
S8JX-P05024D24V2.1A42x97mm
S8JX-P0504848V1.1A42x97mm
S8JX-P05048C48V1.1A42x97mm
S8JX-P05048CD48V1.1A42x97mm
S8JX-P05048D48V1.1A42x97mm
S8JX-P100055V20A42x97mm
S8JX-P10005C5V20A42x97mm
S8JX-P10005CD5V20A42x97mm
S8JX-P10005D5V20A42x97mm
S8JX-P1001212V8.5A42x97mm
S8JX-P10012C12V8.5A42x97mm
S8JX-P10012CD12V8.5A42x97mm
S8JX-P10012D12V8.5A42x97mm
S8JX-P1002424V4.5A42x97mm
S8JX-P10024C24V4.5A42x97mm
S8JX-P10024CD24V4.5A42x97mm
S8JX-P10024D24V4.5A42x97mm
S8JX-P1004848V2.1A42x97mm
S8JX-P10048C48V2.1A42x97mm
S8JX-P10048CD48V2.1A42x97mm
S8JX-P10048D48V2.1A42x97mm
S8JX-P150055V30A42x97mm
S8JX-P15005C5V30A42x97mm
S8JX-P15005CD5V30A42x97mm
S8JX-P15005D5V30A42x97mm
S8JX-P1501212V13A42x97mm
S8JX-P15012C12V13A42x97mm
S8JX-P15012CD12V13A42x97mm
S8JX-P15012D12V13A42x97mm
S8JX-P1502424V6.5A42x97mm
S8JX-P15024C24V6.5A42x97mm
S8JX-P15024CD24V6.5A42x97mm
S8JX-P15024D24V6.5A42x97mm
S8JX-P1504848V3.3A42x97mm
S8JX-P15048C48V3.3A42x97mm
S8JX-P15048CD48V3.3A42x97mm
S8JX-P15048D48V3.3A42x97mm
S8JX-P30012C12V27A78x119mm
S8JX-P30012CD12V27A78x116mm
S8JX-P30024C24V14A78x119mm
S8JX-P30024CD24V14A78x116mm
S8JX-P30048CD48V7A78x116mm
S8JX-P60005C5V120A116x123mm
S8JX-P60012C12V53A116x123mm
S8JX-P60024C24V27A116x123mm
S8JX-P60048C48V13A116x123mm
S8JX-P30005C5V60A78x119mm
S8JX-P60005CD5V120A117x116mm
S8JX-P60012CD12V53A117x116mm
S8JX-P60024CD24V27A117x116mm
S8JX-P60048CD48V13A117x116mm
S8JX-P30012N12V27A71x92mm
S8JX-P30024N24V14A71x92mm
S8JX-P30048N48V7A71x92mm
S8JX-P30005N5V60A71x92mm
S8JX-P60005N5V120A110x92mm
S8JX-P60012N12V53A110x92mm
S8JX-P60024N24V27A110x92mm
S8JX-P60048N48V13A110x92mm
