Technical data

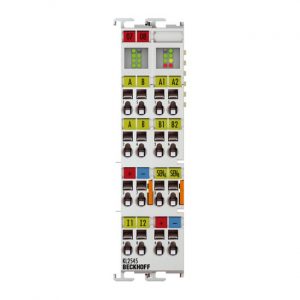

KL2545, KS2545
Number of outputs
2
Nominal voltage
8…50 V DC
Auxiliary voltage
24 V DC via power contacts
Load type
inductive > 1 mH, valves, coils
Max. output current
2 x ±3.5 A (short-circuit proof, thermal-overload proof for both channels together)
PWM clock frequency
36 kHz
Duty factor
0…100 % (current-controlled)
Resolution
max. 12 bit
Electrical isolation
500 V (K-bus/field potential)
Current consumption power contacts
typ. 30 mA + load
Current consumption K-bus
typ. 100 mA
Bit width in the process image
48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status
Configuration
no address setting, configuration via Bus Coupler or controller
Weight
approx. 100 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/see documentation
Pluggable wiring
for all KSxxxx Bus Terminals
Approvals/markings
CE
